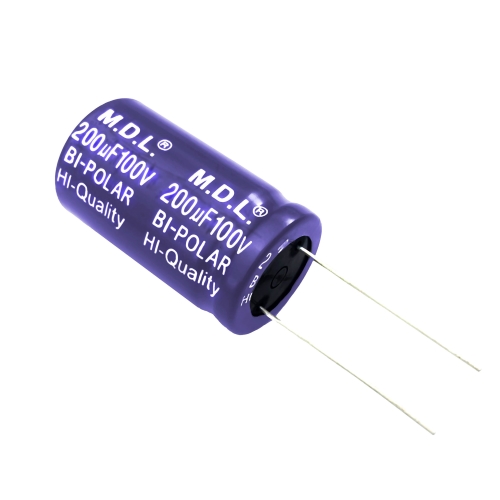

M.D.L. The NP Non-Polar / BP Bi-Polar Series RADIAL Type E-Caps are non-polarized / bi-polar aluminum electrolytic capacitors specially designed for audio and loudspeaker applications.
Featuring an radial lead configuration, these capacitors are suitable for speaker crossover networks, audio filtering, signal coupling, and other AC signal applications where voltage polarity may periodically reverse.
- Product Overview
- Specifications
- Features

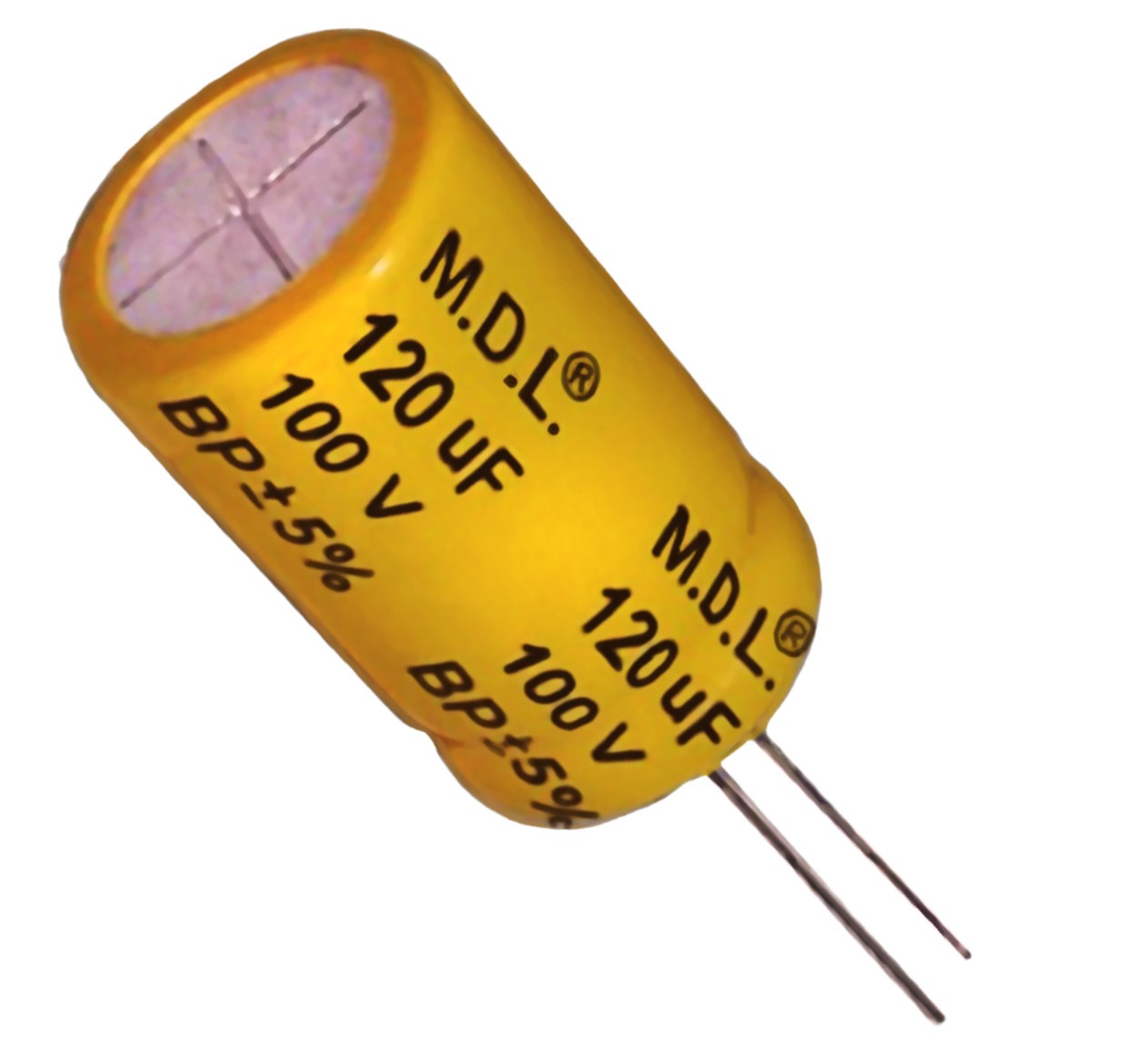

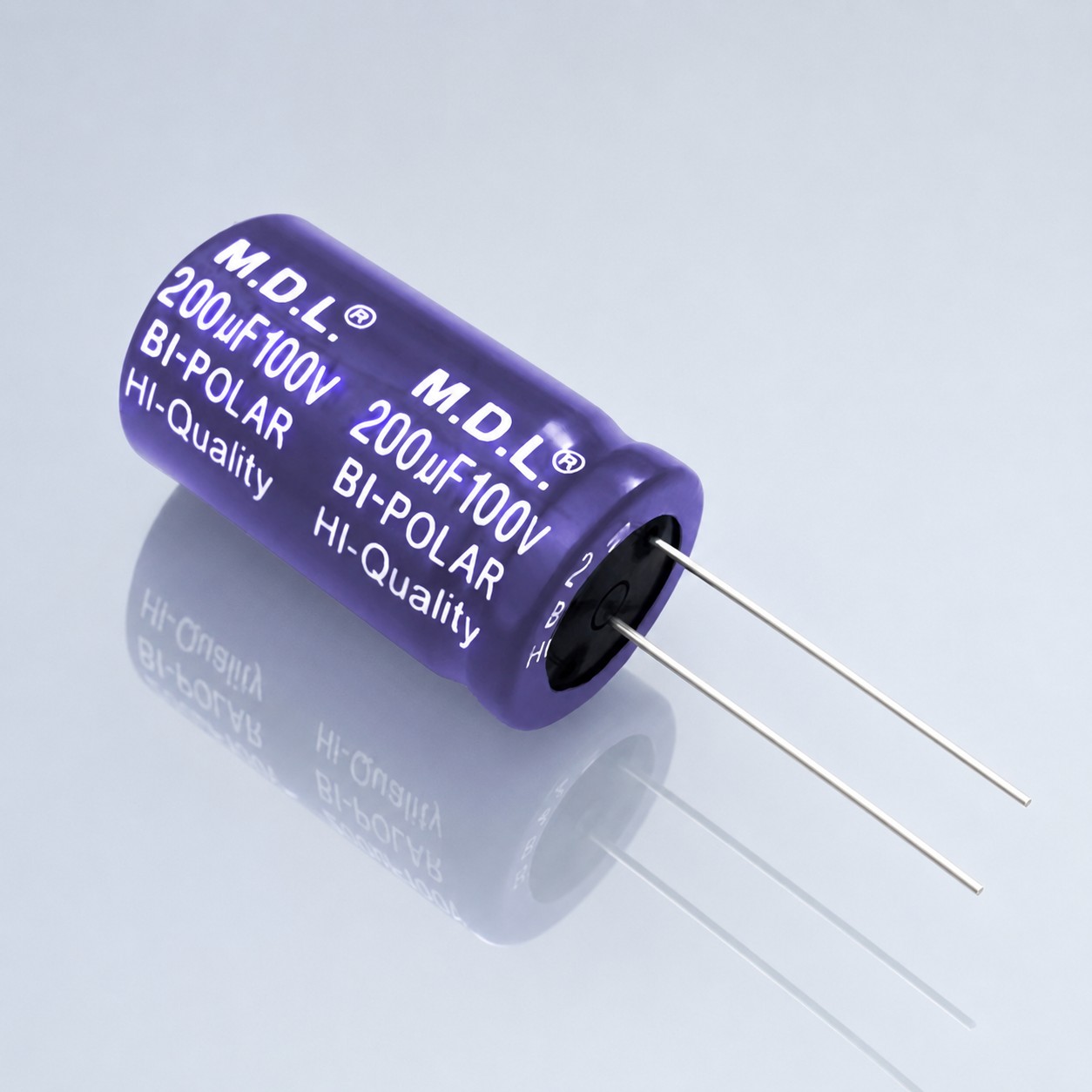

Product Overview
The NP Non-Polar / BP Bi-Polar Series is manufactured using aluminum foil, electrolytic paper, electrolyte, and other selected materials, and is designed specifically for audio and AC signal applications.
Unlike conventional polarized aluminum electrolytic capacitors, NP/BP capacitors feature a non-polar / bi-polar construction, allowing them to be used with AC signals and circuits where voltage polarity periodically reverses. This makes them particularly suitable for loudspeaker crossover and other audio applications.

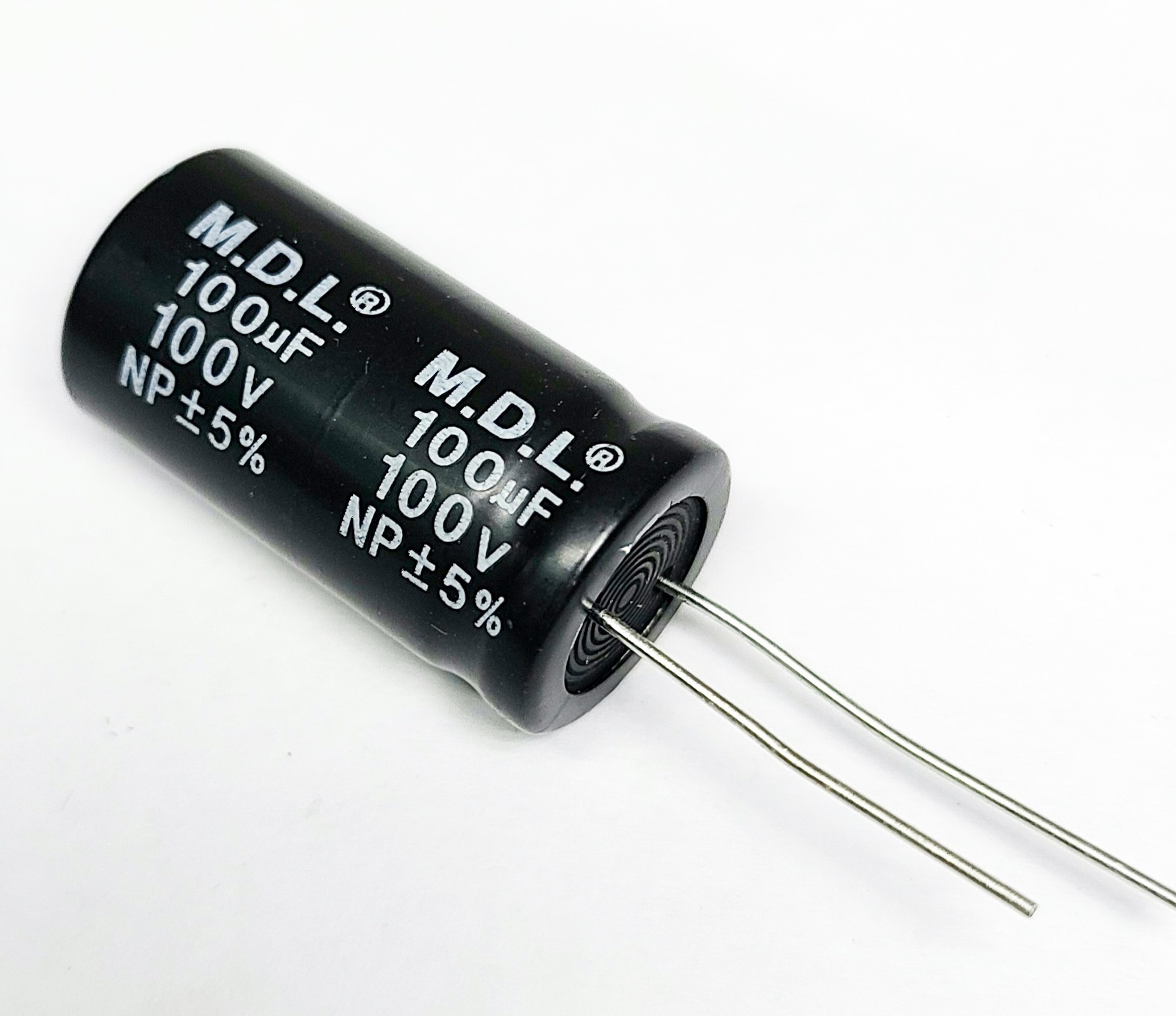

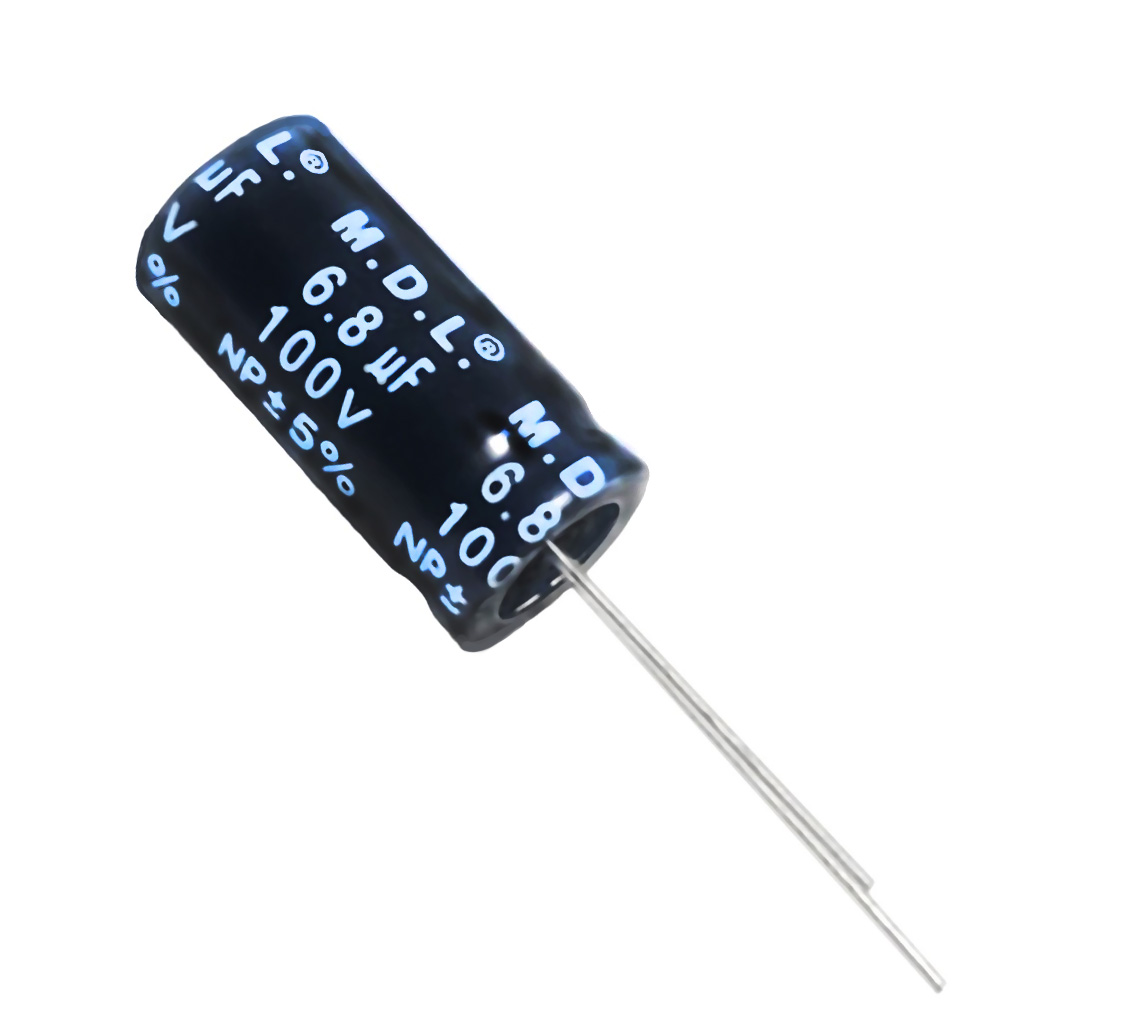

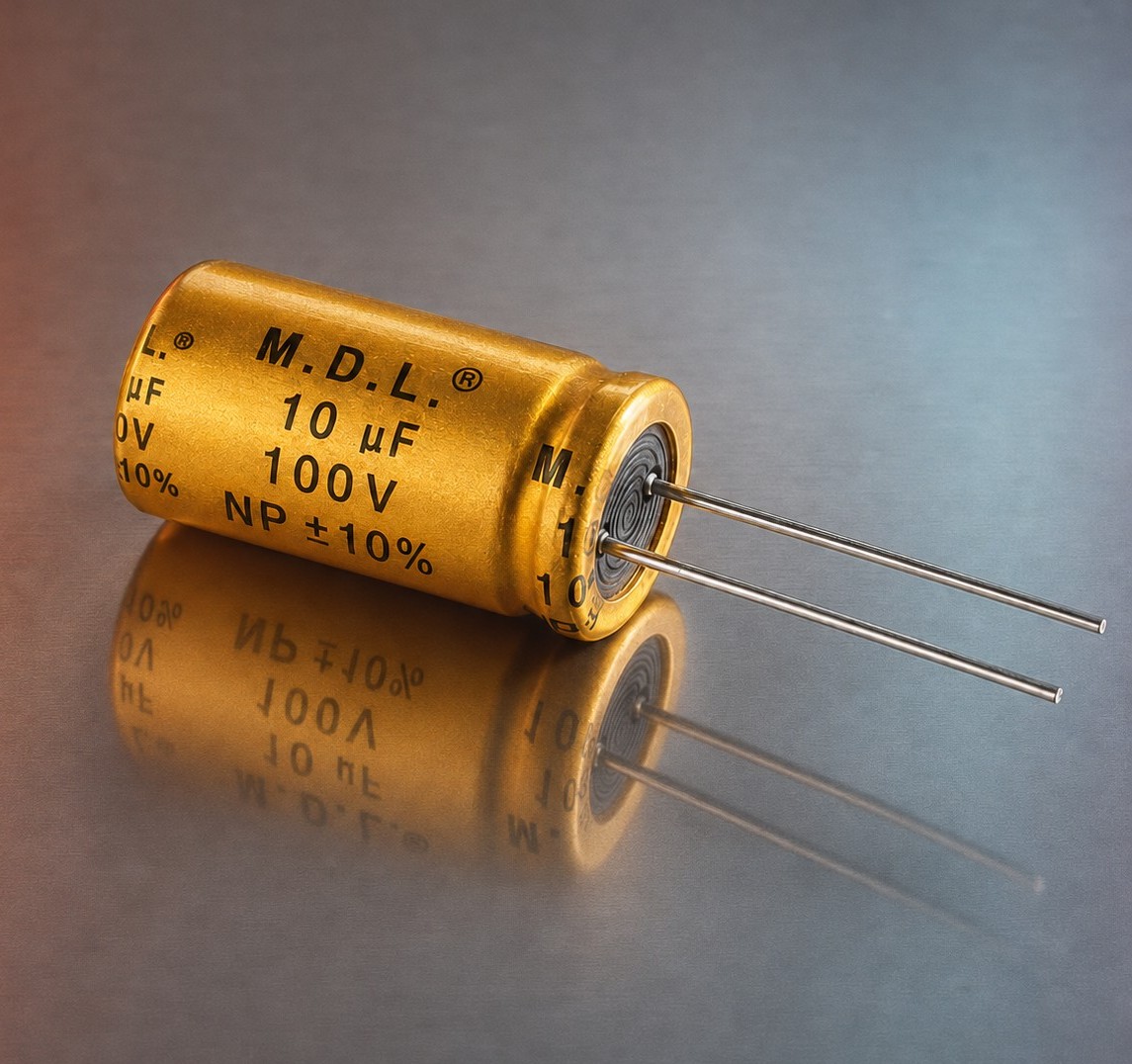

The radial lead configuration features both leads extending from the same end of the capacitor, allowing convenient PCB mounting and efficient use of board space. The compact vertical construction is suitable for both manual assembly and automated PCB production.
The series is designed for a wide range of loudspeaker and audio equipment applications. It can be used as a filtering component in high-frequency, mid-frequency, and low-frequency crossover circuits, as well as for audio coupling, filtering, and other AC signal applications.

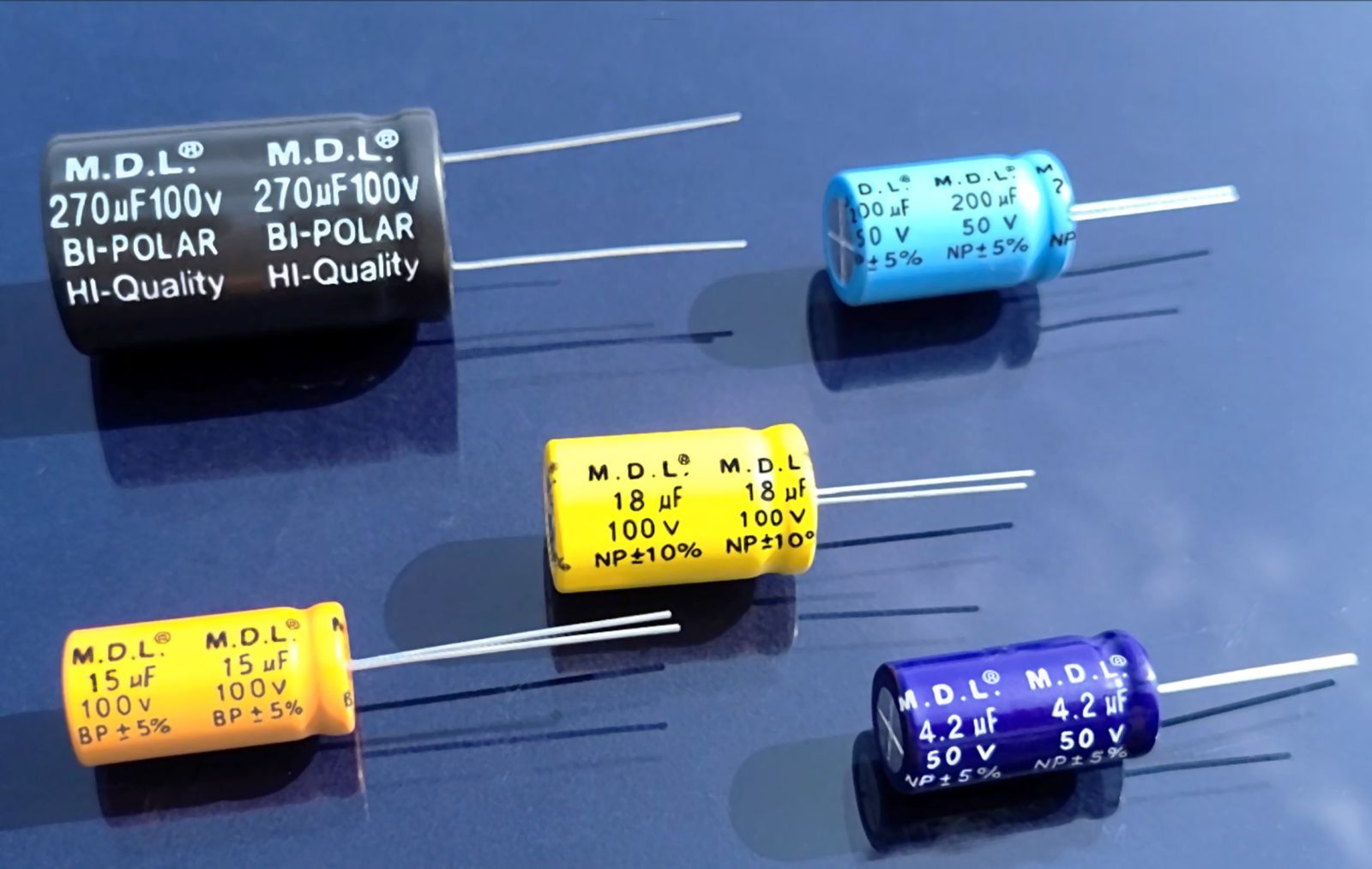

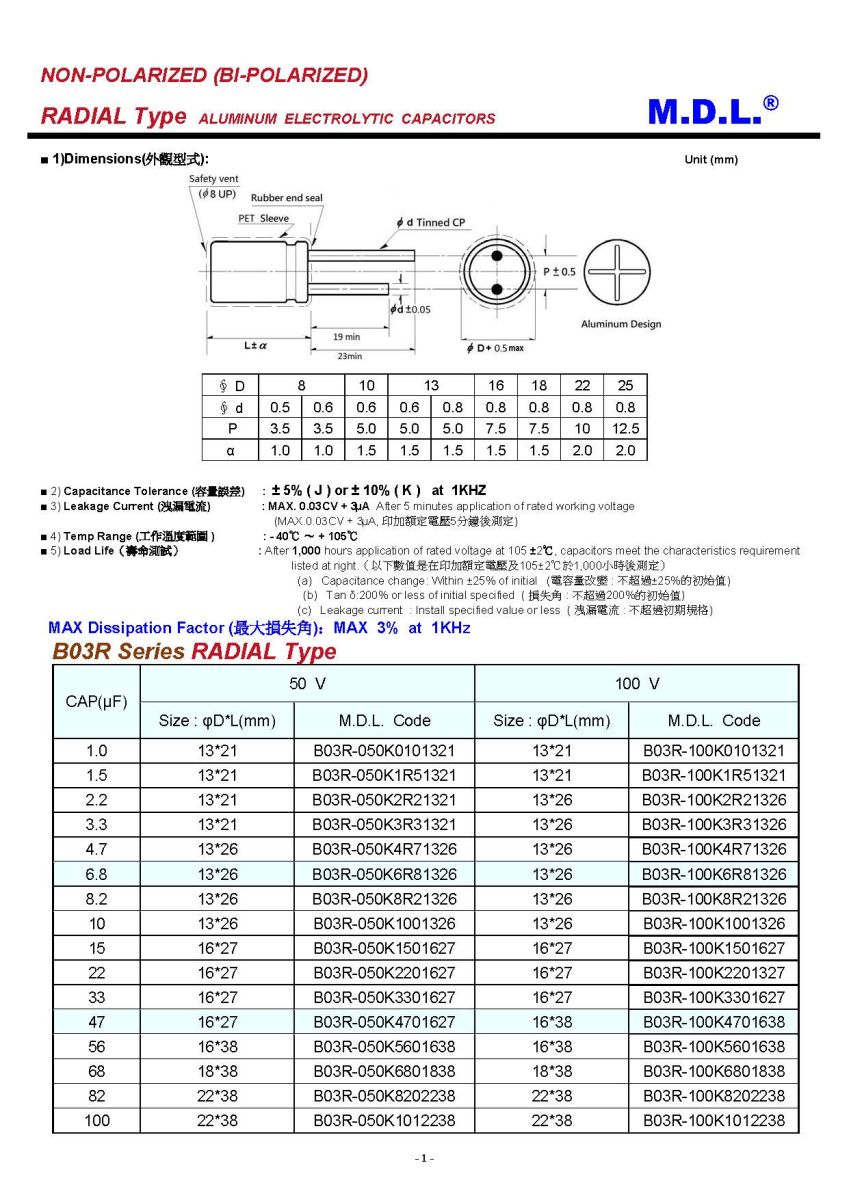

Specifications
.jpg)
M.D.L. NP Non-Polar BP Bi-Polar Series RADIAL Type
Aluminum Electrolytic Capacitors.jpg)
How to Choose the Right DF
Lower DF = Lower Loss
For audio applications, a lower Dissipation Factor (DF) generally indicates lower capacitor losses and better AC performance.
M.D.L. offers different DF levels, allowing customers to select the appropriate balance between performance, size and cost according to their application requirements.
Lower DF → Lower Loss → May Require Larger Size / Higher Cost
A lower DF specification may require a larger capacitor construction, resulting in a larger physical size and higher cost.
| SERIES |
MAX. D.F.(Dissipation Factor) |
TYPE | RATED WORKING VOLTAGE RANGE (VDC) |
CAPACITANCE RANGE ( μF) |
| P03 |
47uF50V <3% @ 1KHZ 15uF100V <3% @ 1KHZ |
RADIAL |
50V 100V |
1.0uF-47uF 1.0uF-157uF |

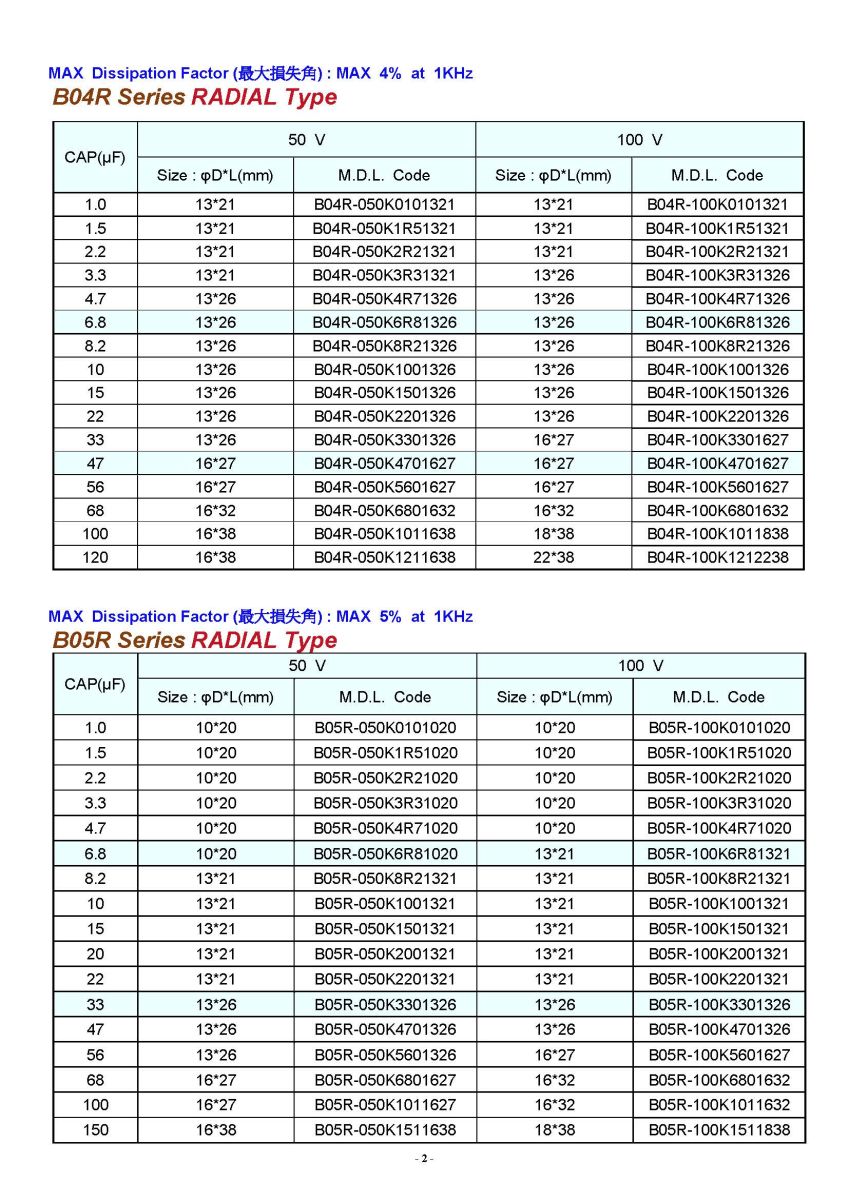

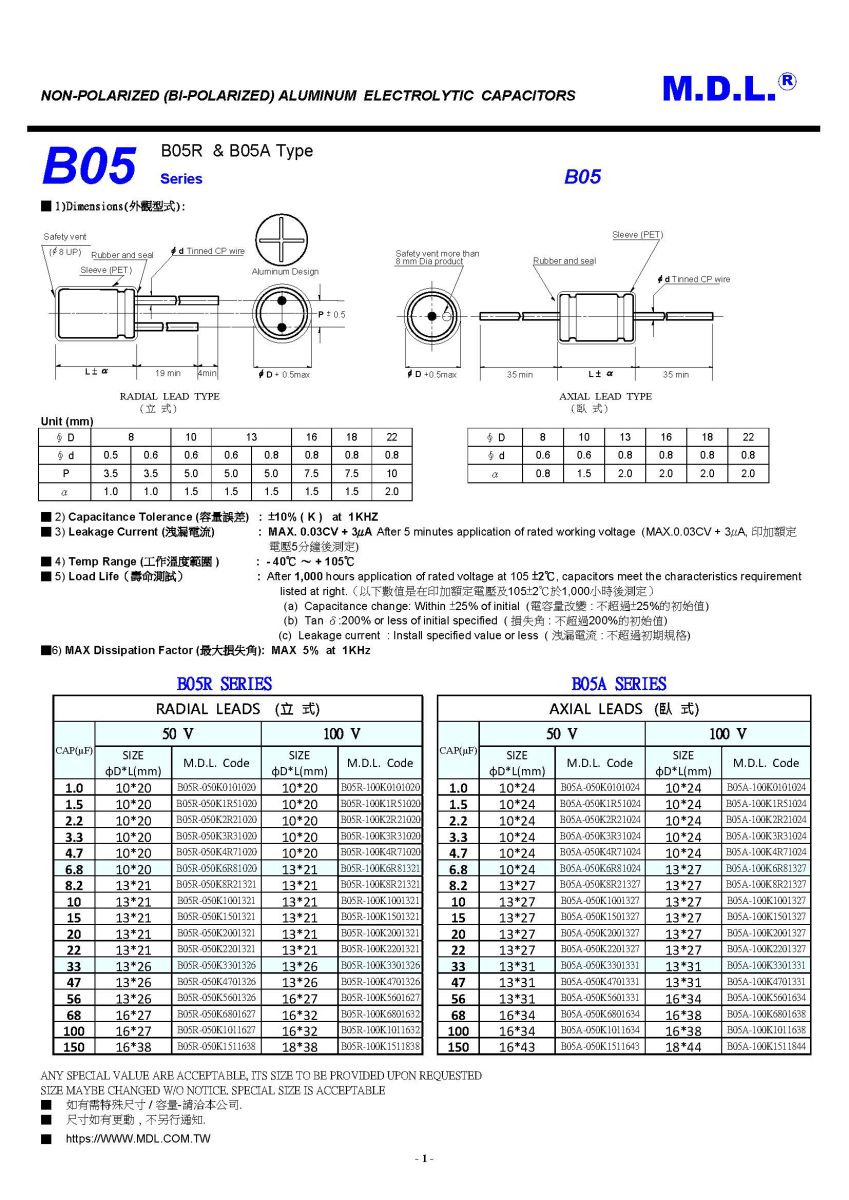

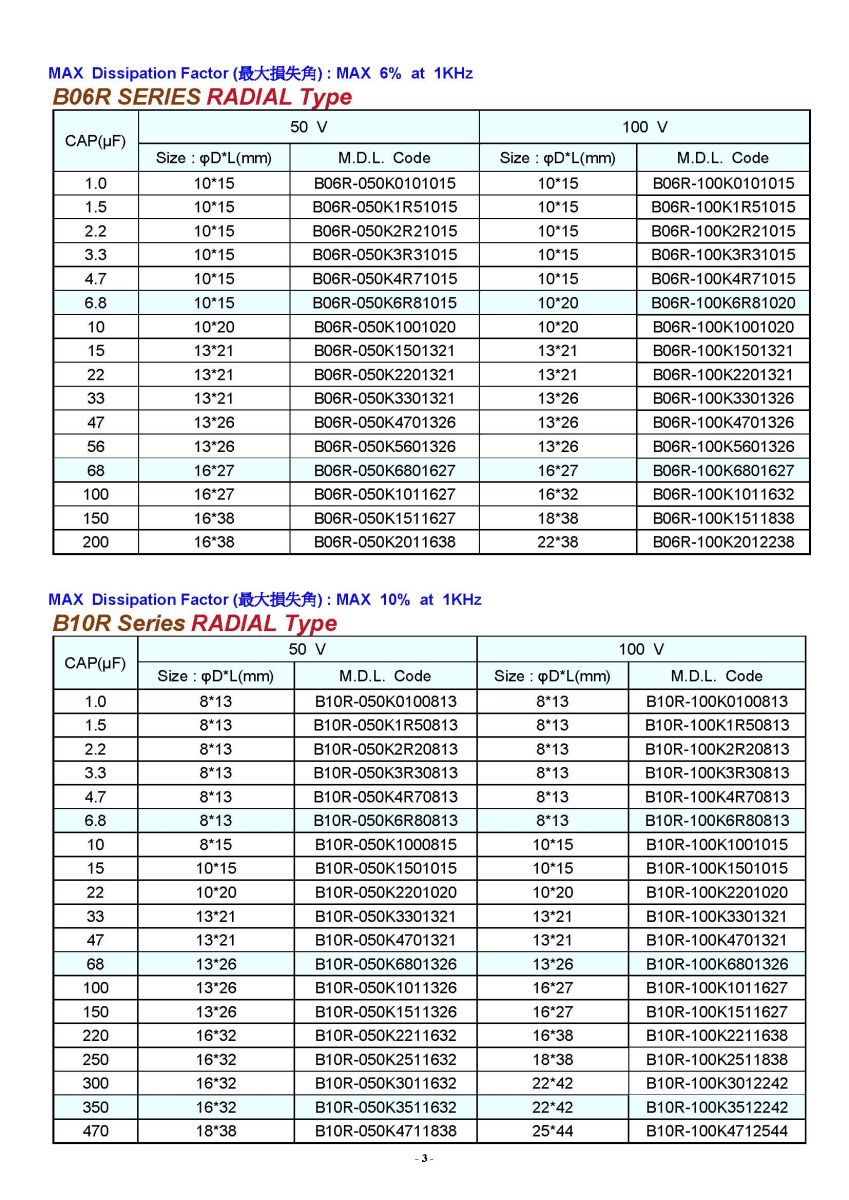

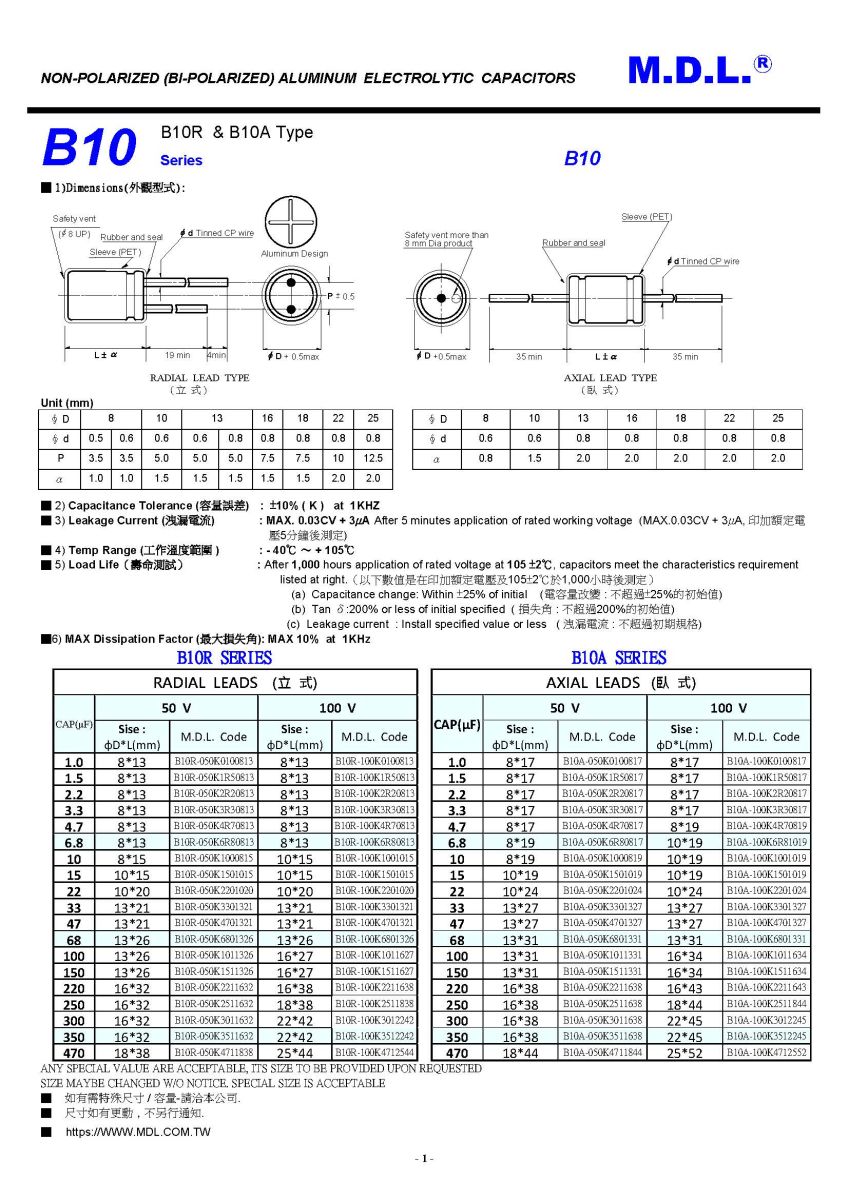

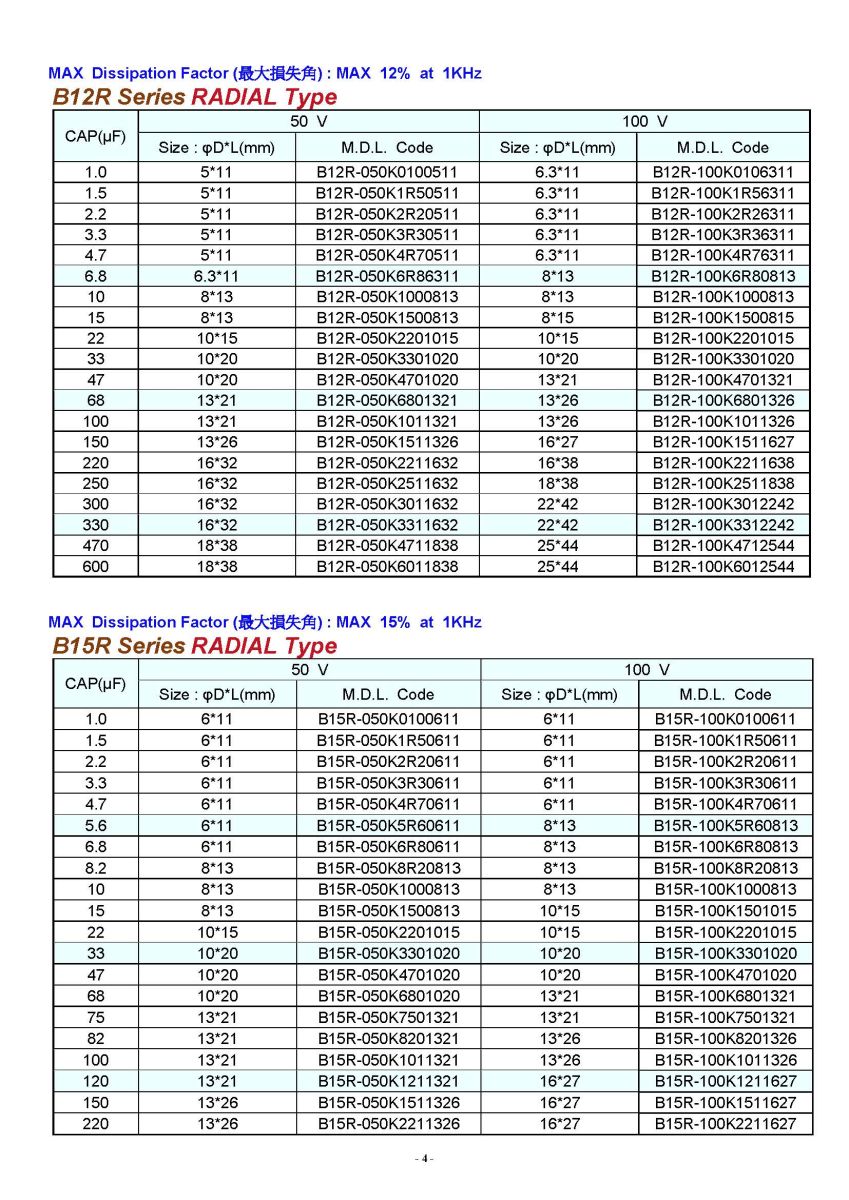

| B03 | <3% @ 1KHZ | RADIAL | 50V/100V | 1.0uF-100uF |
| B04 | <4% @ 1KHZ | RADIAL | 50V/100V | 1.0uF-120uF |
| B05 | <5% @ 1KHZ | RADIAL | 50V/100V | 1.0uF-150uF |
| B06 | <6% @ 1KHZ | RADIAL | 50V/100V | 1.0uF-200uF |
| B10 | <10% @ 1KHZ | RADIAL | 50V/100V | 1.0uF-470uF |
| B12 | <12% @ 1KHZ | RADIAL | 50V/100V | 1.0uF-500uF |
| B15 | <15% @ 1KHZ | RADIAL | 50V/100V | 1.0uF-600uF |
| N04 | <4% @ 120HZ | RADIAL | 50V/100V | 1.0uF-680uF |
| N06 | <6% @ 120HZ | RADIAL | 50V/100V | 1.0uF-150uF |
| N10 | <10% @ 120HZ | RADIAL | 50V/100V | 1.0uF-150uF |
**Various specifications are also available upon request.**
**The capacitance/size values in the product specifications are standard values. Please contact us for other special specifications.**
**To comply with Sony SS-00259, aluminum electrolytic capacitors can only use PET tubing.**
All our capacitors use PET tubing (RoHS compliant).
Features
- Non-Polar / Bi-Polar Design
Designed for AC signals and circuits with periodically reversing voltage polarity. - Radial Lead Type
Both leads extend from the same end of the capacitor for convenient PCB mounting and efficient space utilization. - Designed for Audio Applications
Specially designed for audio equipment, loudspeakers, and audio signal circuits. - Ideal for Speaker Crossovers
Suitable for high-frequency, mid-frequency, and low-frequency speaker crossover applications. - Compact and Space-Saving
The vertical radial construction helps minimize PCB space requirements. - Suitable for AC Signal Applications
Suitable for audio coupling, filtering, and other AC signal circuits. - Stable and Reliable Construction
Manufactured using established aluminum electrolytic capacitor technology for stable and reliable performance. - Easy Installation
Standard radial lead construction is suitable for PCB mounting and mass production. - Customized Specifications Available
Customized capacitance, rated voltage, dimensions, lead spacing, and other specifications are available according to customer requirements.
